Atlantis 1.6E0

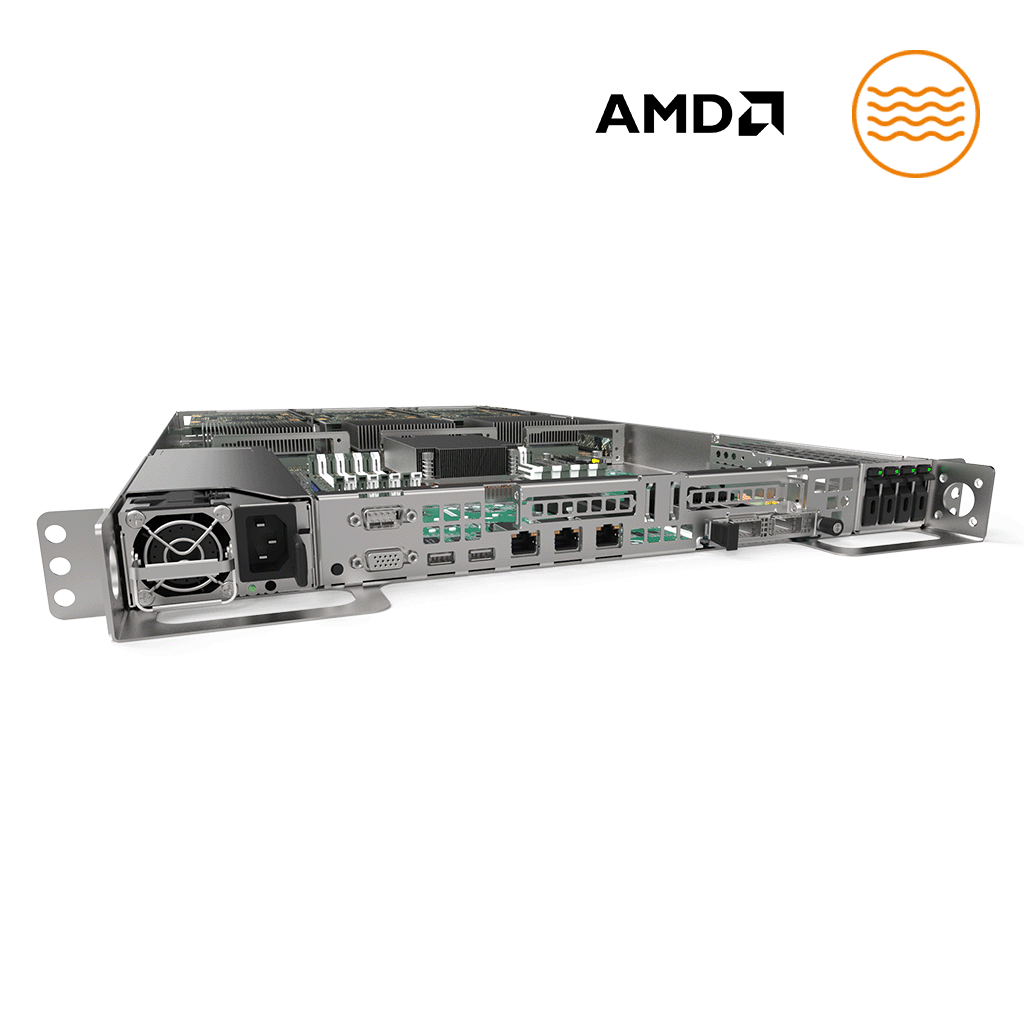

https://2crsi.com/shop/atlantis-1-6e0-62929 https://2crsi.com/web/image/product.template/62929/image_1920?unique=1df0184Atlantis 1.6E0 is a server designed to be immersed.
The solution enhances cooling efficiency and reduces power consumption, leading the way to a new age of datacenters.
This product is no longer available.
Top Applications

Rendering

Virtualization

HPC

AI/ML
AMD EPYC™ 3rd generation
Take advantage of the most advanced technologies with AMD EPYC™!
Improve the performance of your cloud or HPC workloads while enjoying enhanced security with AMD infinity guard.
The energy efficiency of the EPYC™ platform also allows you to reduce your carbon footprint and significantly improve your total cost of ownership.

Up to 64 Cores
The world’s highest performance server processors for computing.
Up to 128 PCIe 4.0 Lanes
Go beyond the limits with a number of lanes never seen before.
Up to 280 W TDP
The best ratio between number of cores and power consumption.
Up to 4,10GHz in Boost mode
Enjoy even more amazing performance!

Designed for GPU and FPGA support
Featuring a powerful GPU architecture that supports up to 6 GPUs and FPGAs in a single U chassis, including NVIDIA H200, H100, AMD Instinct™ MI200, MI100 and Xilinx Alveo accelerator to manage your highest AI and HPC and High Frequency workload.
The Atlantis 1.6E0 has been designed to power at its best hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.
Immersion ready server!
The Atlantis 1.6E0 is designed for immersion cooling!
2CRSi’s servers made for immersion are innovative and effective, ready to handle heavy-demanding workloads and data. Immersion cooling servers are manufactured to target markets such as AI, HPC, virtualization, scientific research… Any type of applications needing a great amount of computing power to work smoothly.
The Atlantis 1.6E0 is ready to be submerged in dielectric liquid and be cooled to run your data and handle your everyday workload!


PCIe 4.0
PCIe 4.0 allows you to use your computer at its full potential. Whether to manage more storage or additional graphic, extension card, their 16GT/s transmission speed is more than enough to experience and profit of their power.
Improving energy efficiency with 80 Titanium Plus PSU
This PSU is 80 PLUS® Titanium certified, ensuring your server runs smoothly while reducing its energy impact. More efficient and more sustainable than ever!

System | |
Form Factor | 19-inch 1U |
Dimension | 482.6mm (W) x 798mm (D) x 44mm (H) 18.98’’ x 31.41’’ x 1.75’’ (W x D x H)
|
Storage | |
Internal type | 4x M.2 NVMe PCIe 4.0 x4 22110 (CPU0) |
Motherboard | |
Chipset | System on Chip |
CPU | AMD EPYC™ 7002 and 7003 Series Processor family TDP up to 280W/CPU |
Socket
|
1x Socket SP3 (LGA 4094) |
Expansions slots | 6x PCIe 4.0 x16 full-length full six slots for GPU/FPGA (300W max) |
Memory | |
Total Slots |
16 (8-channel per CPU)
|
Capacity | Maximum up to 2TB (Using RDIMM 3DS 128GB) Maximum up to 4TB (Using RDIMM 3DS 256GB) |
Memory Type | DDR4 3200 RDIMM up to 128GB DDR4 3200 LR-DIMM 3DS up to 128GB DDR4 3200 RDIMM 3DS up to 256GB |
Network | Onboard per node : 1 Intel® i350-AM2: 2 RJ45 (1GbE) OCP 3.0 Options per node : 1 OCP NIC 3.0 (PCIe4.0 x16) |
Front I/O | |
Ports | 2 Type-A (USB3.2 Gen1) 3x RJ45 1x VGA 1x DB9 Serial Port 1x Power with Power Status LED 1x ID switch with ID Status LED |
Server Management
| |
Software |
AMI MegaRAC |
Remote management |
WebGUI, Intelligent Platform Management Interface (IPMI) |
Power Supplies | |
Type | 180–240Vac 80 PLUS Titanium (96%) |
Output Power
|
Up to 2200W
|
Operating Environnement | |
Operative relative humidity |
20% ~90% (Non condensing) |
Temperature |
Operating temperature: 10°C to 35°C Non-operating temperature: -40°c ~ 70°C |
Immersion ready | Working in all 19’’ immersion system |
