System |
|
Model (Barebone)
| BRB-GI1-608R-G-R010 |
Form Factor | 19" 5U
|
Dimension | 447 x 222.25 x 945 (WxHxD, mm)
|
Cooling technology | Front: 5 x 80x80x80mm (17,200rpm), 6 x 60x60x76mm (21,700rpm) Rear: 6 x 80x80x80mm (17,000rpm), 2 x 40x40x56mm (29,700rpm) Internal: 6 x 40x40x28mm (25,000rpm), 4 x 60x60x56mm (24,000rpm) |
Storage |
|
External type | 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays |
RAID Controller | Add-card or VROC in option |
Motherboard |
|
Chipset
| Intel® C741
|
CPU | Intel® Xeon® 5th Gen Scalable Processors family TDP 350W max/CPU
|
Socket
|
Dual Socket E (LGA 4677)
|
Expansions slots | 8x PCIe x16 (Gen5 x16 bus) Low Profile 4x PCIe x16 (GenR x16 bus) Full height Full lenght |
BMC
| Integrated Aspeed® AST2600
|
TPM | TPM 2.0 |
Memory |
|
Total Slots
| 32 (8-channel per CPU, up to 2-DIMM per channel)
|
Capacity |
Maximum up to 8TB per Node (Using RDIMM 3DS 256GB)
|
Memory Type
| 5th Gen Intel® Xeon®: Up to *5600MHz (1DPC), 4400MHz (2DPC) 4th Gen Intel® Xeon®: Up to 4800MHz (1DPC), 4400MHz (2DPC) Intel® Xeon® Max Series: Up to 4800MHz (1DPC), 4400MHz (2DPC) |
Network
|
2x 10Gb/s BASE-T LAN ports (Intel® X710-AT2) 1x 10/100/1000 management LAN
|
GPU | Supports NVIDIA HGX™ H100 with 8 x SXM5 GPUs with NVlink highspeeed interconnect and integrated NVIDIA Infini |
I/O |
|

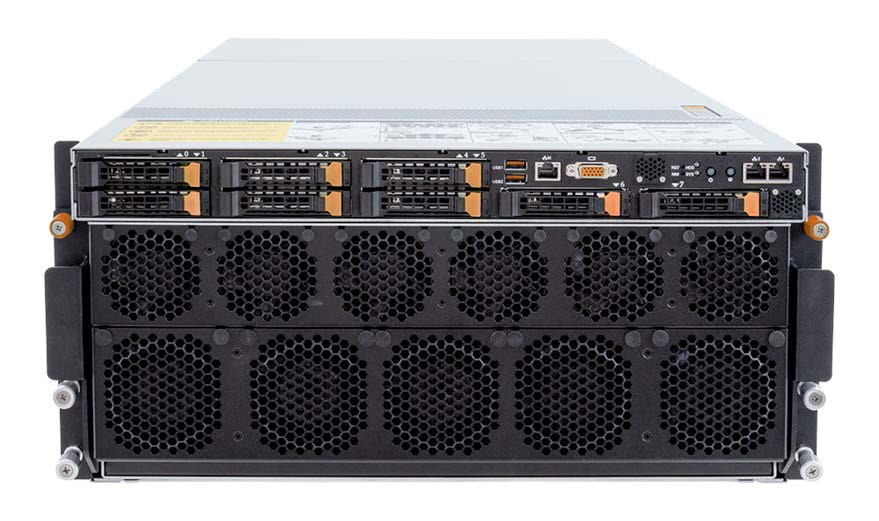

Front
| 2 x USB 3.2 Gen1 1 x VGA 2 x RJ45 |

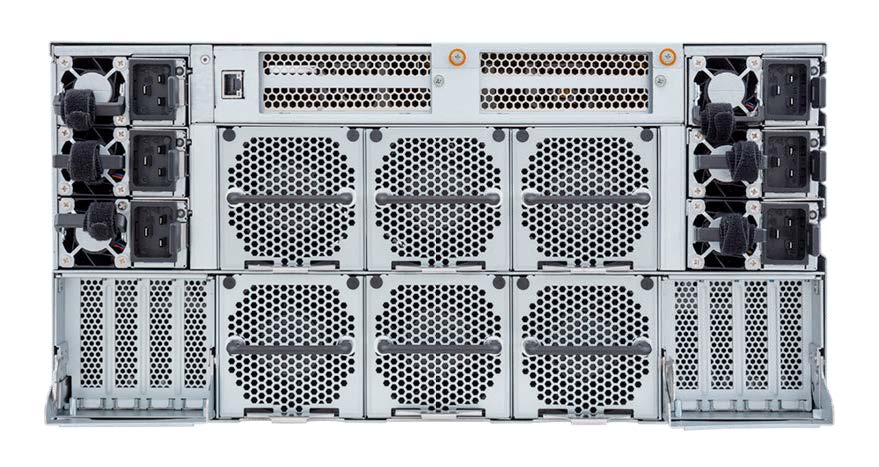

Rear
| 1x BMC management network port |
Management Solution
|
|
Out of Band Remote Management
|
WebGUI, Intelligent Platform Management Interface (IPMI) with KVM functionality as standard |
Power Supply | |
Type | 4+2 3000W redundant power supply |
Power rating | 12 KW at 100% Load |
Power efficiency | 880 PLUS Titanium (96% at 50% load) |
Operating Environement |
|
Operating temperature | 10°C to 35°C (50°F too 95°F) |
Non-operating temperature | Storage (packed): -40°C to +70°C (-40°F to +158°F) |
Operating relative humidity | 10% to 80% RH |
Non-operating relative humidity | 8% to 92% RH |
|
