OCtoPus 3H (Rev. 1)

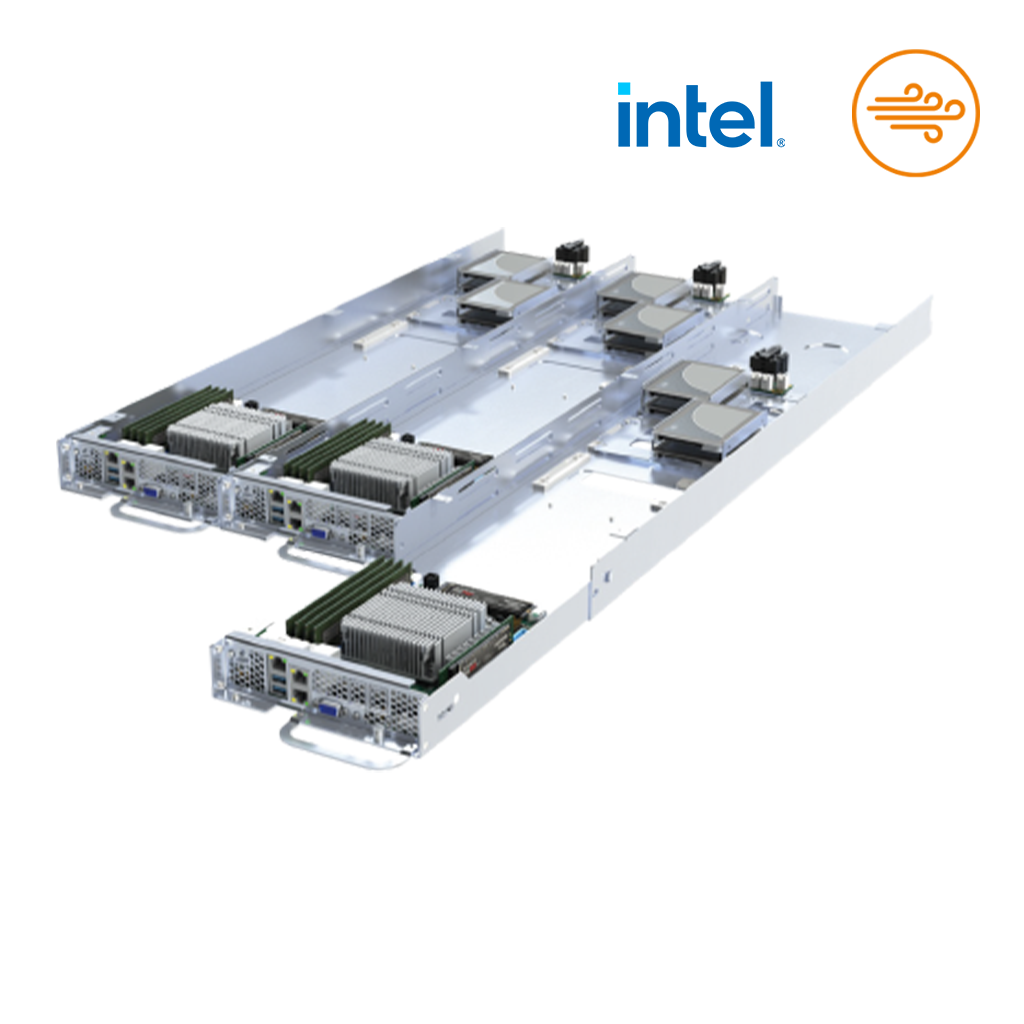

Barebone OCtoPus 3 1OU 21" composed of three blade nodes with 1 socket H5 for Intel® Xeon® E-2300 Series Processors. 4 DIMMs slots per CPU.
This product is no longer available.
| Cooling system: Air cooling |
| CPU brand: Intel® |
| Number of sockets: 1 |
| CPU socket: H5 (LGA 1200) |
| Memory slots: 4 per node |
| Form factor: 21" 1OU |
Key Features
Ultra High
density
3 nodes on a single
Open rack Unit
E-2300
Processors
No concession on efficiency
and performances.
Solar Impulse certified
OCtoPus server solutions are certfied since October 2021.
3 years warranty
Full warranty included on all systems.
6 year available.
Low power
Best-in-class network performance, serving low-latency, high-throughput applications up to 2 ports @ 200 Gb/s.
Up to 36 kW in a single rack
To enable increased density in a rack, we have developed an advanced rack-level air cooling solution.
IoT Made Flexible
Located at the rear of the rack, it consists of 24 low-energy fans providing high airflow for optimal cooling while eliminating fans at the server level.
Intel® Xeon®
E-2300 Processors
Low-power entry-level processors with no concessions in efficiency, productivity and security.
E-2300 Processors family offers 10 processors with 4,6 or 8 cores, and TDP ranging from 65 to 95 W.
Up to 8 Cores
Choose between 4, 6 or 8 Cores.
Up to 20 Pcie 4.0 Lanes
PCI Express 3.0 – Up to 24 lanes (PCH).
Up to 95 W TDP
From 65 to 95W low power CPU.
Up to 5,1 GHz
Reach high frequency via Intel Turbo Boost 2.0.
PCIe 4.0
PCIe 4.0 allows you to use your computer at its full potential. Whether to manage more storage or additional graphic, extension card, their 16GT/s transmission speed is more than enough to experience and profit of their power.
