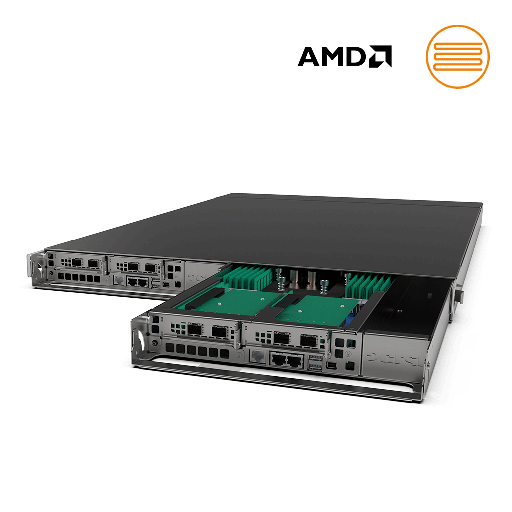

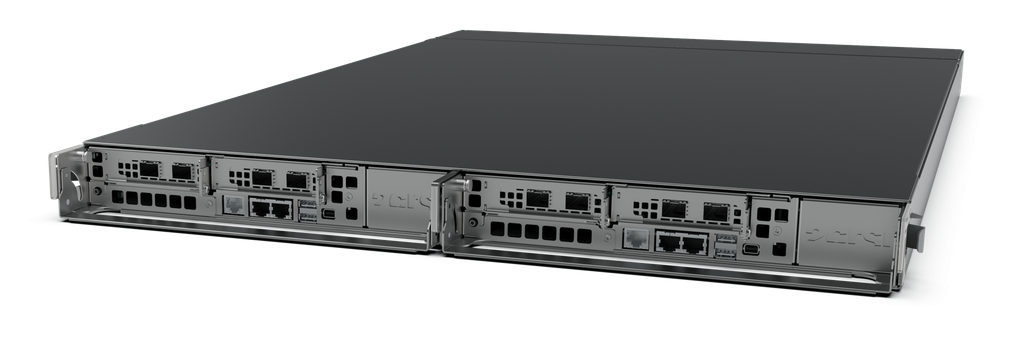

OCtoPus 2GG
1OU 21" composed of two blade nodes. DLC cooled with 2 sockets SP5 for 9004/9005 AMD EPYC™ processors. 8 DIMMs slots per CPU.
| Cooling system: Direct Liquid Cooling |
| CPU brand: AMD |
| Number of sockets: 2 per node |
| CPU socket: SP5 (LGA 6096) |
| Memory slots: 24 slots |
| Form factor: 21'' 1OU |
Key Features
World's most efficient x86 CPU
Access the highest performance with the AMD EPYC™ 9004/9005 Series processor family.
Solar Impulse certified
OCtoPus server solutions are certfied since October 2021.
3 years warranty
Full warranty included on all systems.
6 year available.
OCP 3.0 NIC
Best-in-class network performance, serving low-latency, high-throughput applications up to 2 ports @ 200 Gb/s.
OCP inspired DLC server
Ready for DLC
OCtoPus DLC solutions servers are equipped with leak-proof blind mate connectors to attach to the manifolds.
No more pipes to disconnect during maintenance, just pull the server back to remove it.
The server blades also provide a blind-mate power module for busbars connection.
DLC brings high density to the next level
With up to 1.960 w on a single OpenRack Unit, our direct liquid solution enables for more IT equipment per rack than ever before.

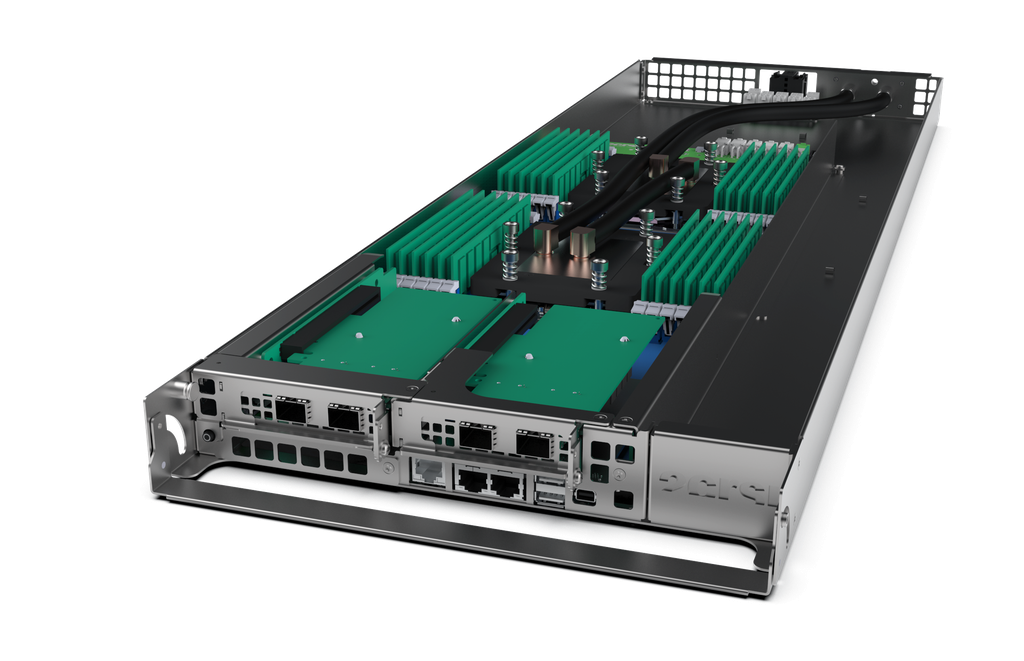

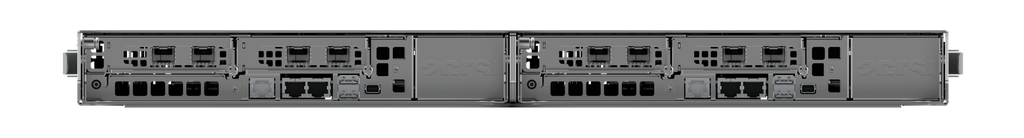

Servicability from the front
Each node is independent and is designed to support DLC with a blind-mate liquid module interfacing with our OCtoRack 42 DLC.
Power distribution is driven from Busbars at the rear of the rack.
No more power cable, no more pipe to disconnect from the manifolds!
21" platform with 19" footprint
The mating
OCTORACK 42 DLC rack from 2CRSi has the same foot print as a standard 19'' rack allowing more IT equipment density for the same space!
Why Direct Liquid Cooling?
Increase your data center density and achieve a PUE < 1.1 with the efficiency of our DLC solutions.
AMD EPYC™ 4th & 5th generation
Discover the AMD EPYC™ 9004 and 9005 Series Processors, designed for unmatched performance, scalability, and energy efficiency in the most demanding data center workloads.
With up to 128 cores and 256 threads in the 4th generation and up to 192 cores and 384 threads in the 5th generation, these processors excel in enterprise applications, HPC, and AI tasks.
The advanced architecture and enhanced memory and I/O bandwidth deliver superior performance per watt.
Up to 192 Cores
The world’s highest performance server processors for computing.
Up to 128 PCIe 5.0 Lanes
128 PCIe 5.0 lanes in single-socket platforms.
Up to 500W TDP
The best ratio between number of cores and power consumption.
Up to 5 GHz in Boost mode
Enjoy even more amazing performance!
Scale with OCP NIC 3.0
Go dense and scale easily thanks to OCP 3.0 Network capabilities.
OCP NIC 3.0 form factor has become OCP’s most impactful project to date.
- Ease of scalability
- Ease of maintenance
- Improved performances
- Improved security
