Our Mona range goes beyond mere functionality; it's about combining power, short delivery time, and cost-effectiveness to create a high-end solution that not only meets but exceeds expectations.
Mona design specifications
*SAS : Depends on SAS Add-on card
Intel® Xeon® Scalable 4th Gen
The latest Intel® Xeon® Processors are designed for the demand of high scalability, high density computing, and widest range of workloads.
With up to 60 cores and 120 threads, these processors are built to handle the most intensive data center workloads, from Data Analytics and IoT/Edge applications to HPC and AI workloads.
Intel® Xeon® 4th Gen processors feature advanced security technologies to help protect data in an ever-changing threat landscape, while opening up new business opportunities.
Up to 60 Cores
Designed to handle for intense data center workloads.
Up to 80 PCIe 5.0 Lanes
Greater flexibility and faster operation.
Up to 350W TDP
Optimal power consumption.
Up to 3.50GHz in Boost mode
Performance at its peak.
DDR5 DIMM Chipsets
DDR5, the latest iteration of memory technology, surpasses its predecessors in terms of speed.
With a remarkable 50% increase in bandwidth, DDR5 achieves a data transfer rate of 4.8 GT/s, while DDR4 lags at 3.2 GT/s.
DDR5 operates at a lower voltage of 1.1v, compared to the 1.2v of DDR4. This advancement enables the DIMM to provide more precise control over power delivery, resulting in smoother, consistent, and reliable operation.
La DDR5 prend en charge des densités de mémoire allant jusqu'à 256 Go sur un seul emplacement mémoire, ce qui améliore encore ses capacités. En ce qui concerne la fréquence, la DDR5 fonctionne dans une plage de 2200 à 4800 MHz.
Mona 1.4SR has 32 DIMMs slots available.

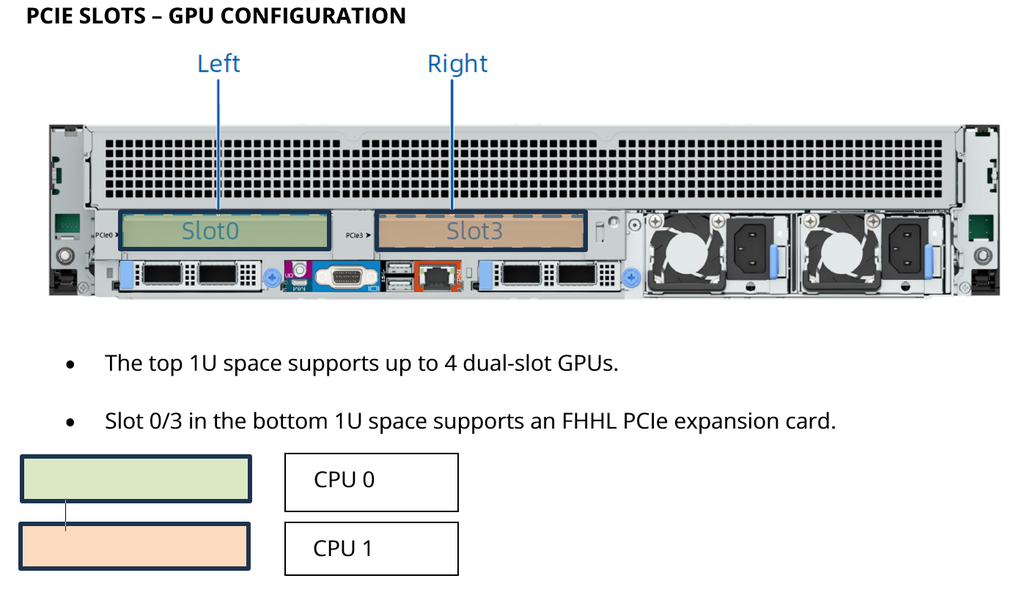

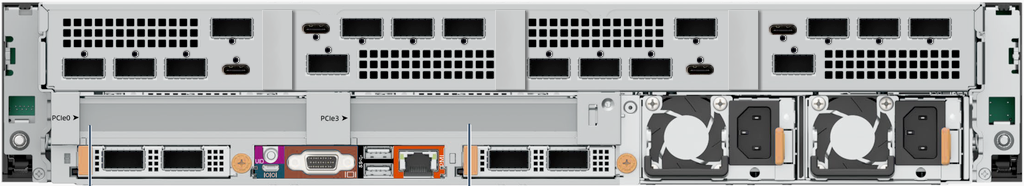

Designed for 4 GPUs
Featuring a powerful GPU architecture that supports up to four GPUs slots in a single U chassis, including NVIDIA H100, A100, AMD Instinct™ MI100 and Xilinx Alveo accelerator to manage your highest AI and HPC and High Frequency workload.
*Other graphics cards can be considered on request.
PCIe Gen 5.0 ready
PCIe 5.0 is the latest addition to the market! Its capacity doubled compared to PCIe 4.0, you will feel the difference. With a data transfer rate of up to 32GT/s, you can use the full power of current and future components!
Scale with OCP NIC 3.0
Go dense and scale easily thanks to OCP 3.0 Network capabilities.
OCP NIC 3.0 form factor has become OCP’s most impactful project to date.
Ease of scalability
Ease of maintenance
Improving energy efficiency with 80 PLUS® Titanium
This PSU is 80 PLUS® Titanium certified, ensuring your server runs smoothly while reducing its energy impact. More efficient and more sustainable than ever!
