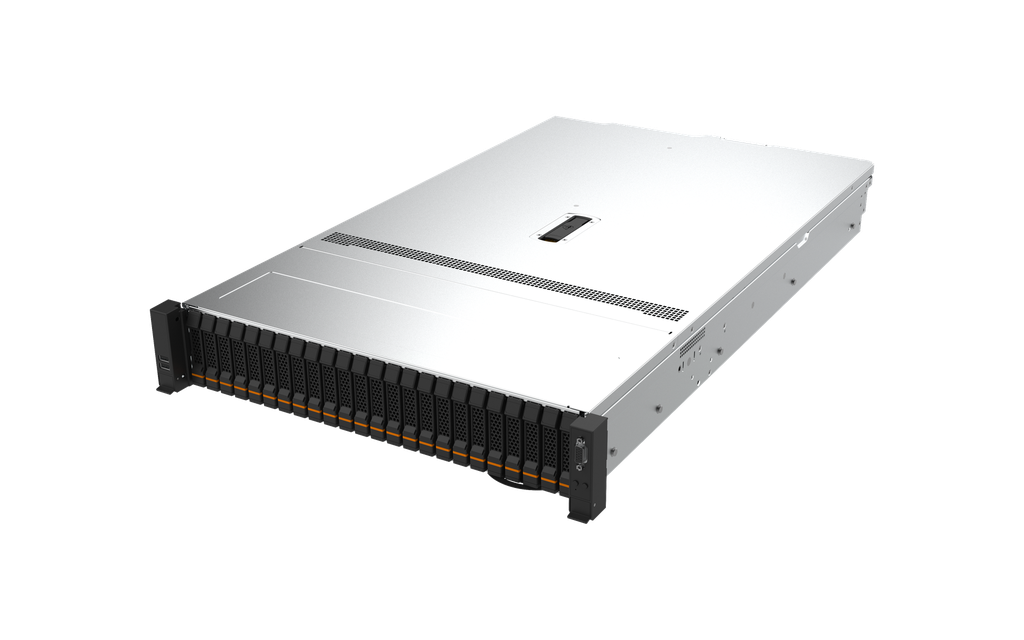

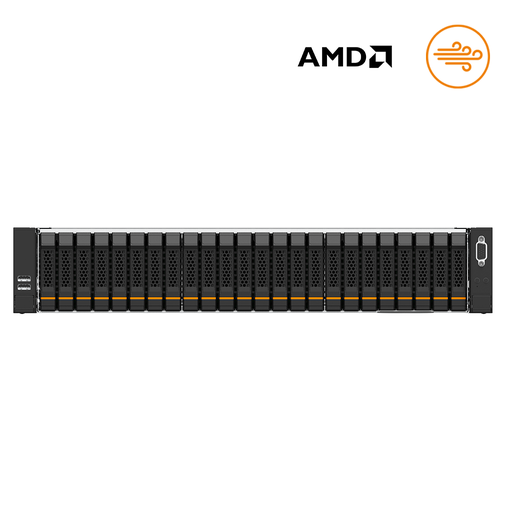

Mona 1.24SP5-S
Server based on 5th Gen AMD EPYC™ processor with up to 24 slots of storage.
| Cooling system: Air Cooling |
| CPU brand: AMD |
| Number of sockets: 1 |
| CPU socket: SP5 (LGA 6096) |
| Memory slots: 12 |
| Form factor: 19" 2U |
Mona Range
Cost effective servers designed for modularity
Our Mona range goes beyond mere functionality; it's about combining power, short delivery time, and cost-effectiveness to create a high-end solution that not only meets but exceeds expectations.
Top Applications
VDI
Virtualization
Hypervisor
Cloud/hosting
Mona design specifications
AMD EPYC™ 5th generation
Introducing the AMD EPYC™ 9005 Series Processors family, a next-generation platform designed to deliver exceptional performance, scalability, and security for the most demanding workloads.
With up to 192 high-efficiency cores and 384 threads on Zen 5c variants, or up to 128 high-performance cores and 256 threads on Zen 5 models, the EPYC™ 9005 Series is built to handle everything from enterprise applications to HPC and AI workloads.
Featuring support for 12 channels of DDR5 memory, PCIe Gen 5 connectivity, and CXL 2.0 for flexible accelerator and memory expansion, these processors offer the bandwidth and flexibility needed for modern data centers
Up to 192 Cores
The world’s highest performance server processors for computing.
Up to 128 PCIe 5.0 Lanes
Go beyond the limits with a number of lanes never seen before.
Up to 500W TDP
The best ratio between number of cores and power consumption.
Up to 3.7GHz in Boost mode
Enjoy even more amazing performance!

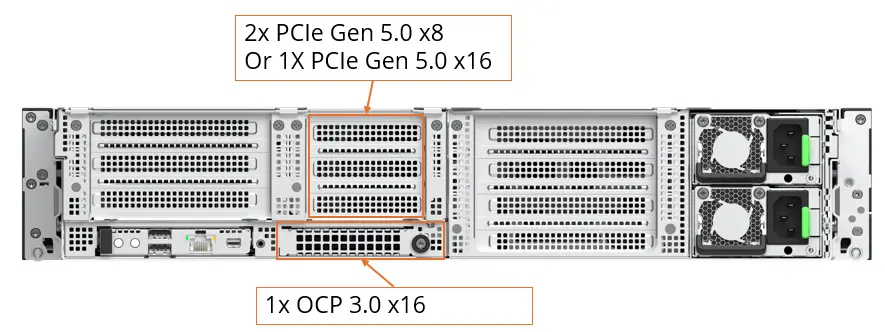

PCIe Gen 5.0 ready
PCIe 5.0 is the latest addition to the market! Its capacity doubled compared to PCIe 4.0, you will feel the difference. With a data transfer rate of up to 32GT/s, you can use the full power of current and future components!
DDR5 DIMM Chipsets
With a remarkable 50% increase in bandwidth, DDR5 achieves a data transfer rate of 4.8 GT/s, while DDR4 lags at 3.2 GT/s.
DDR5 operates at a lower voltage of 1.1v, compared to the 1.2v of DDR4. This advancement enables the DIMM to provide more precise control over power delivery, resulting in smoother, consistent, and reliable operation.
DDR5 supports memory densities of up to 256GB on a single memory slot, further enhancing its capabilities. As for frequency, DDR5 performs within the range of 2200 to 6400 MHz.
Mona 1.24SP5-S has 12 DIMMs slots available.
Scale with OCP NIC 3.0
Go dense and scale easily thanks to OCP 3.0 Network capabilities.
OCP NIC 3.0 form factor has become OCP’s most impactful project to date.
- Ease of scalability
- Ease of maintenance
- Improved performances
- Improved security
